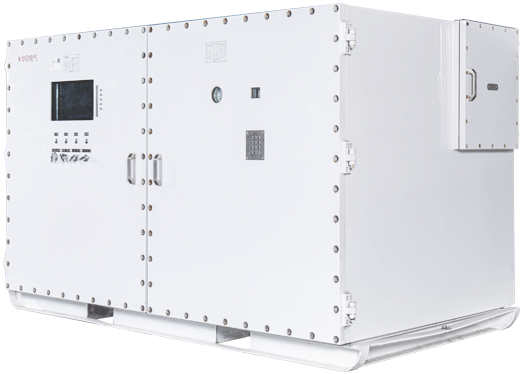

The BPJV1 Series Flame-proof and Intrinsically-safe High-voltage VFD for Mining Applications features three-level ANPC inverting technology, with high power, high voltage, low loss IGBT , high reliability, high efficiency and high-performance vector control technology is achieved. A 12-pulse low-harmonic rectifier technology is used, with a standard dv/dt filter at the output. A three-level topology is adopted for the primary circuit, with fiber optic isolation used for the IGBT triggering signals. Power electronic modules are cooled by water cooling technology. The maximum starting torque and maximum current are up to 2.5 times the rated values, making the product suitable for heavy loads and high torque equipment. The distance from the inverter to the motor can be up to 3-5 kilometers. The product features master-slave dynamic load-sharing control, and fast load dynamic power (torque) balancing. Copper cable connectors are used for input and output cables to enter and exit the cabinet, making it convenient for on-site installation and commissioning.

Topology

Technical Characteristics
Scope of application
Coal mine armored face conveyors, belt conveyors, emulsion pumping stations and more;
Strong applicability
12-pulse power supply; low harmonic content; high precision speed regulation and high starting torque;
Easy maintenance
Modular structural design;
Long power supply distance
Supports long-distance power supply from the frequency inverter to the motor;
High cooling efficiency
Embedded waterway design;
Conformance to the networking requirements of intelligent mines
features Modbus RTU; TCP/IP and other standard communication protocols.
Applications

The 3.3kV Flame-proof VFD series covers the following power ratings: 855kW, 1000kW, 1250kW, 1400kW and 1600kW. Different ratings are available in single circuit configuration, with two or three-module combined configuration available. This flexible configuration makes the products suitable for coal mine armored face conveyors, belt conveyors, emulsion pumping stations and other applications.

Product Selection
S/N  Product Name  Product Model  Rating
Voltage
Rating
Current
Rated
Power
Product Dimensions
(W x H x D)
Product
Weight
Flame-proof and Intrinsically-safe High Voltage Variable Fre-
quency Drive for Mining Applications
BPJV1-855/3.3  3300V  190A  855kW  W1858×H1780×D1511  ≤3500kg
Flame-proof and Intrinsically-safe High Voltage Variable Fre-
quency Drive for Mining Applications
BPJV1-1000/3.3  3300V  225A  1000kW  W1858×H1780×D1511  ≤3500kg
Flame-proof and Intrinsically-safe High Voltage Variable Fre-
quency Drive for Mining Applications
BPJV1-1250/3.3  3300V  280A  1250kW  W1858×H1780×D1511  ≤3500kg
Flame-proof and Intrinsically-safe High Voltage Variable Freq-
uency Drive for Mining Applications
BPJV1-1400/3.3  3300V  315A  1400kW  W1858×H1780×D1511  ≤3800kg
Flame-proof and Intrinsically-safe High Voltage Variable Fre-
quency Drive for Mining Applications
BPJV1-1600/3.3  3300V  360A  1600kW  W1858×H1780×D1511  ≤3800kg
Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications  (2 in 1) BPJV1-2×855/3.3  3300V  2×190A  2×855kW  W3060×H1780×D1511  ≤7000kg
Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications (2 in 1) BPJV1-2×1000/3.3  3300V  2×225A  2×1000kw  W3060×H1780×D1511  s7000kg
Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications (2 in 1) BPJV1-2×1250/3.3  3300V  2×280A  2×1250kW  W3060×H1780×D1511  ≤7000kg
Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications (2 in 1) BPJV1-2×1400/3.3  3300V  2×315A  2×1400kW  W3060×H1780×D1511  ≤7600kg
10  Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications (2 in 1) BPJV1-2×1600/3.3  3300V  2×360A  2×1600kW  W3060×H1780×D1511  7600kg
11  Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications (3 in 1)  BPJV1-3×855/3.3  3300V  3×190A  3×855kW  W4340×H1780×D1511  ≤11000kg
12  Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications (3 in 1)  BPJV1-3×1000/3.3  3300V  3×225A  3×1000kW  W4340×H1780×D1511  ≤11000kg
13  Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications (3 in 1)  BPJV1-3×1250/3.3  3300V  3×280A  3×1250kW  W4340×H1780×D1511  ≤11000kg
14  Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications (3 in 1)  BPJV1-3×1400/3.3  3300V  3×315A  3×1400kW  W4340×H1780×D1511  ≤12000kg
15  Flame-proof and Intrinsically-safe High Voltage Multi-circuit Modular VFD for Mining Applications (3 in 1)  BPJV1-3×1600/3.3  3300V  3×360A  3×1600kW  W4340×H1780×D1511  ≤12000kg
