Product Introduction
The modular multi-circuit VFD is an integrated product developed for specific application scenarios with a rated voltage of 1140V. The 2-in-1 combination product covers the power range of 110kW~400kW, while the 3-in-1 combination product covers 400kW~710kW. It can be used in underground coal mine multi-drive belt conveyors, armored face conveyors, emulsion pumps and other applications.

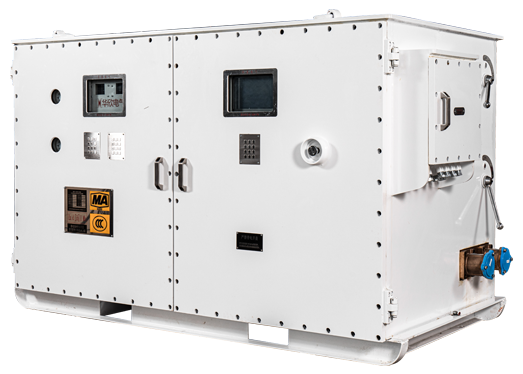

Triple combination inverter
Technical Characteristics
Modular structure
the VFD module can be pulled out as a single unit for complete replacement and fast maintenance;
Fast connection to power supply and loads
The main circuit uses flame-proof quick-connect terminals for fast connection to power supply and loads;
Water cooling
both internal or external circulation cooling water can be used, for flexible and versatile deployment;
Low parasitic inductance with laminated bus design
Low parasitic inductance with laminated bus design, long service life, low interference and reliable operation;
Advanced master-slave load-sharing function based on communication
Advanced master-slave load-sharing function based on communication, long-term reliable multiple-device operation, high balancing accuracy, short commissioning cycle;
Improve reliability and response time
The load-sharing communication cable is connected internally to improve reliability and response time;
The optional speed control function
The optional speed control function enables real-time speed control depending on the amount of materials on the conveyor; energy-saving and cost-reducing;
The three-level topology
The three-level topology provides a perfect output waveform, low dv/dt, and worry-free motor operation.
The long-distance power transmission technology
The long-distance power transmission technology allows the distance from the inverter to the motor to be up to 1500m;
Optimized EMC design
Optoelectronic isolation at input and output; good anti-interference capability and low failure rate;
No need to configure any external equipment
Optimized EMC design for low grid impact;
long service life
Self-healing film capacitors
Convenient and flexible
Easy-to-use operation and control interface
Silent operation
Carrier frequency self-regulation and automatic torque adjustment and optimization functions
High output torque
150% of rated torque can be reached at 0.5Hz, with a maximum torque output up to 200%; heavy load startup can be realized at a constant torque
Convenient and flexible
Able to drive three-phase asynchronous motors or permanent magnet synchronous motors
A variety of functions
Display and operating panels in Chinese or English on a full color display
Configured with Siemens programmable controllers
Various control programs available for different scenarios
Compatible with the standard communication interfaces of Intelligent Mines
Multiple optional communication interfaces such as RS485, CAN and TCP/IP
Advanced vector control technology
Advanced vector control technology with or without speed encoder
Standard spare parts inventory
Standard spare parts inventory to keep customers worry-free
Product Selection
|
S/N |
Product Model |
Rating Voltage |
Rating Current |
Rated Power |
Product Dimensions |
Product Weight |
| 1 | BPJ1-3×710/1140 | 1140V | 3×450A | 3×710kW |
W:3390mm H:1477mm D:1428mm |
9100kg |
| 2 | BPJ1-3×630/1140 | 1140V | 3×395A | 3×630kW | ||
| 3 | BPJ1-3×500/1140 | 1140V | 3×310A | 3×500kW |
8850kg |
|
| 4 | BPJ1-3×400/1140 | 1140V | 3×250A | 3×400kW | ||
| 5 | BPJ1-2×400/1140 | 1140V | 2×250A | 2×400kW |
W:2567mm H:1333mm D:1318mm |
4100kg |
| 6 | BPJ1-2×315/1140 | 1140V | 2×195A | 2×315kW | ||
| 7 | BPJ1-2×250/1140 | 1140V | 2×160A | 2×250kW |
3950kg |
|
| 8 | BPJ1-2×160/1140 | 1140V | 2×104A | 2×160kW | ||
| 9 | BPJ1-2×110/1140 | 1140V | 2×73A | 2×110kW |
3800kg |
