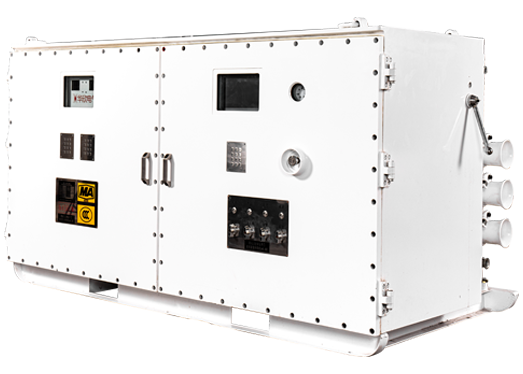

The Flame-proof and Intrinsically-safe AC VFD for Mining Applications is a leading product, suitable for AC motor frequency control in coal mines and other explosive environments containing coal dust or gas. The product is suitable for asynchronous and permanent magnet synchronous motors. The specialized VFD for mining applications uses world-class core components, and features a modular design based on the characteristics of the flame-proof box in combination with the working conditions of a coal mine. With its high starting torque and high precision in speed control, the device is energy saving, efficient, safe and reliable. It can be widely used in coal mine hoists, belt conveyors, armored face conveyors, beam stage loaders, fans, pump stations and other equipment.

Technical Characteristics

Advanced SVPWM space vector PWM modulation

High output torque: 150% of rated torque can be reached at 0.5Hz, with maximum torque output up to 200%

Low-speed high torque

Stable operation at ultra-low speeds at 0.1Hz; the low torque ripple characteristic keeps the torque deviation within 3% through vector control

High-precision self-learning technology

Accurately identify motor parameters, and achieve high-performance vector control

High-speed output using vector control

Highest frequency up to 200Hz

Excellent over-current suppression and over-voltage suppression functions

Avoiding frequent protection shutdowns, and to meet the requirement of complex working conditions

Suitable for power supply conditions in coal mines

Rated voltage fluctuation range is allowed to be -15% ~ +10%

A standard Modbus communication interface

Different communication boards available as options

Wide frequency regulation range

Wide frequency regulation range (0~200Hz)

Form closed-loop control

Built-in PID regulator can be matched with various types of sensors

Complete EMC Solutions

Outstanding energy conservation

Excellent load-balancing function

Excellent load-balancing function when multiple devices are operating in master-slave mode

Suitable for permanent magnet synchronous motor control and synchronous reluctance motor

Easy to operate

Chinese and English language interface

Cooling mode

Air cooling/water cooling

Power range

30 ~ 1000kW/660V, 1140V

Improving the reliability of the VFD

Low inductance bus technology greatly reduces parasitic inductance

Product Selection

Two-quadrant Product Selection

S/N	Product Name	Product Model	Rated Voltage	Rated Current	Rated Power	Product Dimensions (W x H x D)	Product Weight
1	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-110/660	660V	115A	110kW	W1160×H1123×D965	960kg
2	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-160/660	660V	170A	160kW	W1622×H1155×D1035	1100kg
3	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-200/660	660V	205A	200kW	W1846×H1213×D1141	1500kg
4	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-250/660	660V	270A	250kW	W1846×H1213×D1141	1600kg
5	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-315/660	660V	350A	315kW	W2150×H1200×D1140	1900kg
6	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-400/660	660V	385A	400kW	W2150×H1200×D1140	1920kg
7	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-500/660	660V	490A	500kW	W2150×H1200×D1140	2000kg
8	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-110/1140	1140V	73A	110kW	W1622×H1155×D1035	1000kg
9	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-160/1140	1140V	104A	160kW	W1790×H1230×D1617	2200kg
10	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-200/1140	1140V	128A	200kW	W1790×H1230×D1617	2300kg
11	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-250/1140	1140V	160A	250kW	W1790×H1230×D1617	2400kg
12	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-315/1140	1140V	195A	315kW	W1790×H1230×D1617	2450kg
13	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-400/1140	1140V	250A	400kW	W1790×H1230×D1617	2500kg
14	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-500/1140	1140V	310A	500kW	W2150×H1200×D1140	2200kg
15	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-630/1140	1140V	380A	630kW	W2150×H1200×D1140	2300kg
16	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-710/1140	1140V	426A	710kw	W2150×H1200×D1140	2400kg
17	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-800/1140	1140V	480A	800kW	W2790×H1356×D1277	3300kg
18	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-1000/1140	1140V	600A	1000kW	W2790×H1356×D1277	3400kg

Four-quadrant Product Selection

S/N	Product Name	Product Model	Rated Voltage	Rated Current	Rated Power	Product Dimensions (W x H x D)	Product Weight
1	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-30/660K	660V	35A	30kw	W1120×H1003×D1050	630kg
2	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-55/660K	660V	63A	55kW	W1120×H1003×D1050	660kg
3	Flame-proof AC VFD for Mining Applications	BPB2-75/660K	660V	80A	75kW	W1622×H1155×D1035	1180kg
4	Flame-proof AC VFD for Mining Applications	BPB2-110/660K	660V	115A	110kW	W1622×H1155×D1035	4200kg
5	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-160/660K	660V	170A	160kW	W1846×H1213×D1141	1700kg
6	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ2-200/660K	660V	220A	200kw	W1846×H1213×D1141	1800kg
7	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ2-250/660K	660V	270A	250kW	W2150×H1200×D1140	1900kg
8	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ2-315/660K	660V	350A	315kW	W2150×H1200×D1140	1980kg
9	Flame-proof AC VFD for Mining Applications	BPB1-400/660K	660V	385A	400kW	W2150×H1200×D1140	2100kg
10	Flame-proof AC VFD for Mining Applications	BPB1-500/660K	660V	490A	500kW	W2150×H1200×D114C	2200kg
11	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BP11-11011140K	1140V	73A	110kW	W1622×H1155×D1035	1200kg
12	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-160/1140K	1140V	104A	160kW	W2150×H1200×D1140	1850kg
13	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-200/1140K	1140V	128A	200kW	W2150×H1200×D1140	1950kg
14	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-250/1140K	1140V	160A	250kW	W2150×H1200×D1140	1950kg
15	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-315/1140K	1140	195A	315kW	W2290×H1230×D1283	3300kg
16	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-400/1140K	1140V	250A	400kW	W2290×H1230×D1283	3400kg
17	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-500/1140K	1140V	310A	500kW	Reactor Box W1160×H1123×D965 Power Conversion Box W2150×H1200×D1140	2000k9 2100kg
18	Flame-proof and Intrinsically-safe AC VFD for Mining Applications	BPJ1-630/1140K	1140V	380A	630kW	Reactor Box W1160×H1123×D965 Power Conversion Box W2150×H1200×D1140	2000kg 2100kg
19	Flame-proof AC Motor with Integrated VFD	ZBT1-710/1140K	1140V	426A	710kW	Reactor Box W2100×H1333×D965 Rectifier Box W2150×H1397×D817 Inverter Box W2150×H1397×D817	3530kg 2150kg 2170kg
20	Flame-proof AC Motor with Integrated VFD	ZBT1-800/1140K	1140V	480A	800kW	Reactor Box W2100×H1333×D965 Rectifier Box W2150×H1397×D817 Inverter Box W2150×H1397×D817	3530kg 2150kg 2170kg
21	Flame-proof AC Motor with Integrated VFD	ZBT1-1000/1140K	1140V	600A	1000kW	Reactor Box W2100×H1333×D965 Rectifier Box W2150×H1397×D817 Inverter Box W2150×H1397×D817	3530kg 2150kg 2170kg
