Product Introduction

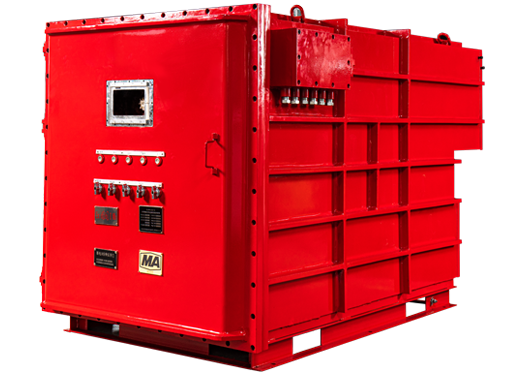

The QJGR Series Flame-proof and Intrinsically-safe High Voltage Vacuum Soft Starter for Mining Applications is a new type of high-tech electrical equipment designed using third generation digital microprocessor control technology and modern thyristor technology. It is a specialized piece of equipment for the soft start of large high-voltage motors, providing the best voltage reduction and current limiting soft start mode for the motors, and mainly used for starting up and shutting down asynchronous motors. Structurally, the device is composed of a main vacuum contactor, fuse, control transformer, control module, high-voltage thyristor module, thyristor protection components, signal acquisition and processing components, and high-voltage vacuum bypass contactor.

Primary System Diagram

Technical Characteristics
Maintenance-free
No downtime for maintenance even after years of continuous operation.
Easy to install and operate
The enclosure is a complete motor starting control and protection system.
Backup Features
The vacuum contactor can be used to start the motor directly
The high-voltage thyristor is the main circuit component
The digital signal processing (DSP) system features voltage equalization protection and overvoltage protection
The advanced fiber-optic transmission technology provides the gate triggering signals
It also provides isolation between the high voltage thyristors and the low voltage control circuits
LCD in Chinese and English language
User-friendly operating interface
RS-485 communication interface
It can communicate with SCADA computer or centralized control center
Strong electromagnetic compatibility
A series of anti-interference measures
Memory function
Memory for five fault histories
A frame assembly
This device is equipped with a frame assembly, while the bottom of the frame is equipped with wheels; the frame assembly can be moved in and out on the guide rail at the bottom of the box.The frame assembly can also be pulled out of the enclosure by one person.
Coast or deceleration ramp stop mode as options
Coast or deceleration ramp stop mode as options
Protection Functions

1. Overload protection;

2. Overload and underload protection;

3. Over-voltage and under-voltage protection;

4. Phase loss protection;

5. Three-phase unbalance protection;

6. Phase sequence protection;

7. Zero-sequence protection;

8. Thyristor over-temperature protection;

9. Wiring error protection;

10. Start Inhibit protection;

11. Long start protection;

12. Bypass contactor fault protection;

13. External fault input;

14. Locked rotor protection;

15. Door open lockout.

16. Time overcurrent protection

17. Short circuit protection

Product Selection

S/N

Product Name

Product Model

Rated Voltage

Rated Current

Product Dimensions

(W x H x D)

Product Weight

1

Flame-proof and Intrinsically-safe High Voltage Vacuum Soft Starter

QJGR-300/10

10KV

300A

W1349×H1405×D2136

2650kg

2

Flame-proof and Intrinsically-safe High Voltage Vacuum Soft Starter

QJGR-300/6

6KV

300A

3

Flame-proof and Intrinsically-safe High Voltage Vacuum Soft Starter

QJGR-150/10

10KV

150A

4

Flame-proof and Intrinsically-safe High Voltage Vacuum Soft Starter

QJGR-150/6

6KV

150A
