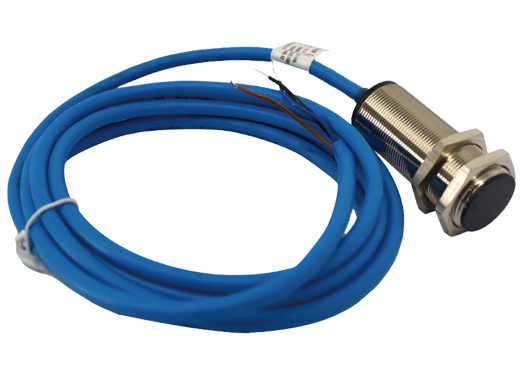

The GUD 10 intrinsically safe position sensor for mining is suitable for dangerous environments prone to coal dust and gas explosions in underground coal mines. It can accurately measure the distance between its detection head and magnetic object. It converts this information into a 4-20mA signal to provide timely reminders of maintenance and replacement of damaged parts to ensure safe equipment operation.

This product can be used with underground hoists, winches and belt conveyors, or applied in other locations that require accurate distance measurement. Featuring a compact and durable structure, this product is supported by a warranty period of 18 months, assuming no external damage occurs.

• Type of protection: Intrinsically safe for mining
• Explosion-proof mark: Ex ib I Mb
• Overall dimensions: 50mm × Φ22mm
• Operating voltage: DC12~24V
• Operating current: ≤40mA
• Output signal: 4-20mA
• Detection distance: 0-10mm
• Accuracy: ≤±2%FS
