System Introduction
System Introduction

The device is combined with various VFDs for mining applications to form a mine hoist frequency conversion control system, which is suitable for underground coal mines and other locations containing coal dust, gas or other flammable and explosive gases. This includes inclined underground shafts, single level, multi-level, single-drum, and double-drum mine hoists.

Electrical Interlocking

1. The neutral position of the operating handle is interlocked with the safety circuit;

2. The emergency stop button on the operating console is interlocked with the safety circuit;

3. The emergency stop of the signaling system is interlocked with the safety circuit;

4. Allows the start signal to interlock with the hoist start circuit;

5. Signal system lockout in the driving direction;

6. The hydraulic station motor is interlocked with the hoist safety circuit;

7. The lubrication station motor is interlocked with the hoist running circuit;

8. Lockout in the overwinding direction and the driving direction;

9. The power-on circuit is interlocked with the safety circuit;

10. Lockout of the upstream feeder switch and safety circuit;

11. The inclined slope stopper is interlocked with the safety circuit;

12. Lockout for operating procedure.

ZTK (A) Electric Flame-proof Hoist Control Device for Mining Applications

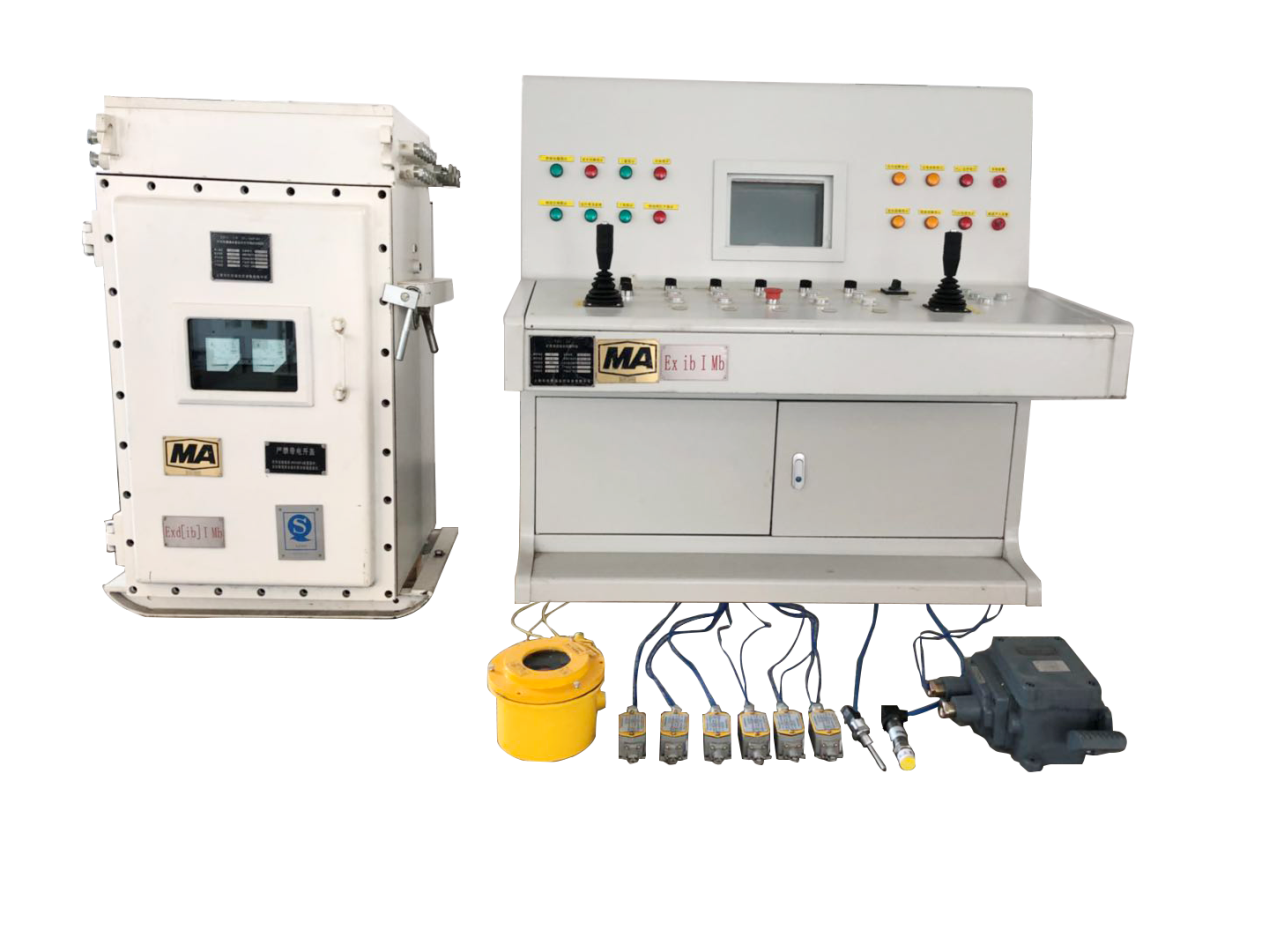

Product Box Picture
Technical Features

Conforms to all safety protection requirements stipulated in the Coal Mining Safety Regulations;

Fully Chinese/English/ Vietnamese HMI, operating parameters and fault descriptions all in native language, easy to use, maintain and repair;

Using advanced vector /DTC control technology, the system features high precision speed regulation, good speed regulation performance and good mechanical characteristics.

The active front-end rectifier (AFE) feedback technology ensures electrical braking with regenerative energy feedback, high braking torque, high power factor and good response characteristics.

High-performance dual PLC is configured to form the parallel control and protection system, while hardware and software redundancy design are adopted for key circuits, such as safety shutdown loops and speed protection loops, to achieve double or triple protection;

The system is designed and evaluated in accordance with the principles of safety and reliability, advanced technology, easy operation and maintenance, cost-savings and practicality;

Basically maintenance-free, significantly reducing equipment downtime due to maintenance;

Complete commissioning services are provided, while the EMC (Electromagnetic Compatibility) of the system meets all requirements of the national and IEC standards;

All equipment and related products feature the Safety Mark Certificate for Mining Applications and compulsory 3C Certificate for Industrial Products;

Electrical Interlocking and Safety Protection
The neutral position of the operating handle is interlocked with the safety circuit
The emergency stop button on the operating console is interlocked with the safety circuit
The emergency stop of the signaling system is interlocked with the safety circuit
Allows the start signal to interlock with the hoist start circuit
Signal system lockout in the driving direction
The hydraulic station motor is interlocked with the hoist safety circuit
The lubrication station motor is interlocked with the hoist running circuit
Lockout in the overwinding direction and the driving direction
The power-on circuit is interlocked with the safety circuit
Lockout of the upstream feeder switch and safety circuit
The inclined slope stopper is interlocked with the safety circuit
Lockout for operating procedure
Software and hardware over-winding protection
Overspeed protection in constant speed section
Overspeed protection in deceleration section
Hardware overspeed protection
Foreshaft 2m/s speed limit protection
Speed deviation protection
Speed sensor failure protection
Depth indicator failure protection
Incorrect direction protection
Loose rope protection
Full storage protection
Brake wear protection
Hydraulic station oil over-pressure protection
Hydraulic station residual over-pressure protection
Lubrication station under-pressure protection
Temperature protection for hydraulic station and main motor
Transmission system failure protection
Clutch failure protection
Automatic deceleration alarm at deceleration point
Foreshaft automatic secondary brake disable function
Product Configuration

S/N

Name

Model

Safety Standard Certificate No.

Flame-proof and Intrinsically-safe Programmable Control Box for Mining Applications

KXJ-158-25/660(A)

MAB120489

Intrinsically-safe Operating Console for Mining Applications

TH1-24

MAB120490

Flame-proof Display Box for Mining Applications

PB2-24

MAJ100055

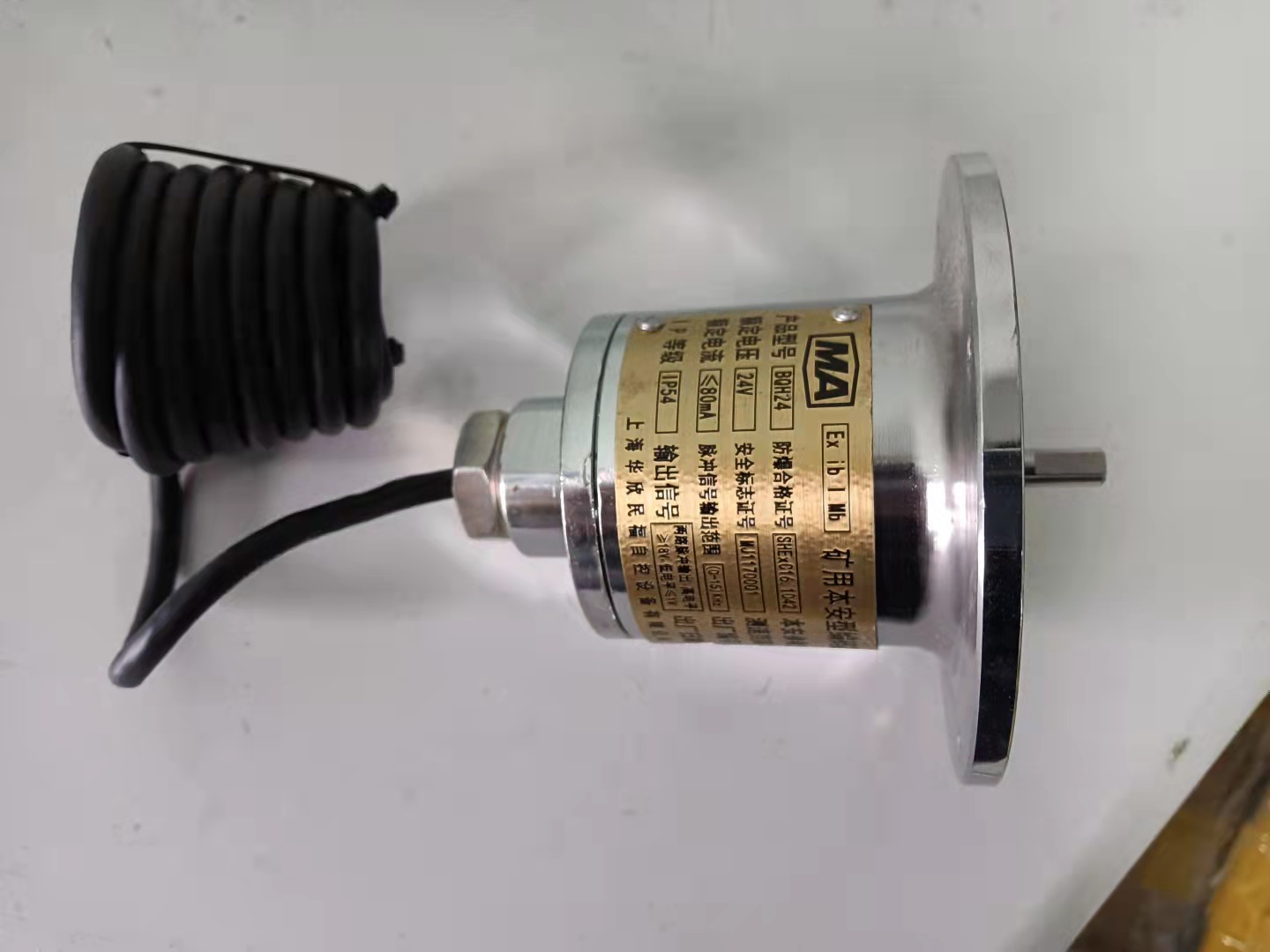

Intrinsically-safe Encoder for Mining Applications

BQH24

MJ1170001

Intrinsically-safe Travel Switch for Mining Applications

KHXC24

MAD140830
